Updated August 5, 2023

Introduction to Types of Memory in Computer

Memory is a fundamental computer component that empowers efficient data access and processing. There are two types of memory: primary (volatile) and secondary (non-volatile), each with distinct purposes. This article explores the Different Types of Memory in Computer, their significance, and their impact on system performance and functionality.

Table of Content

Introduction to Types of Memory in Computer
What is memory in a computer?
Different types of memory in a computer
- Primary Memory
- Secondary Memory
Virtual Memory
Memory Management Unit
Future Trends in Computer Memory

Key Takeaways

A computer contains two types of memory: primary (volatile) and secondary (non-volatile).
Primary memory (RAM and ROM) allows quick data access and temporary storage for running programs, while secondary memory (HDDs, SSDs, etc.) provides long-term data storage.
Understanding the different types of memory is critical for optimizing computer performance and managing data and tasks effectively.

What is memory in a Computer?

Memory is the electronic component that stores data, instructions, and other information for the processor (CPU) to access and use quickly. This crucial part greatly affects the performance and functionality of the whole computer system. By enabling the CPU to retrieve and process data rapidly, memory allows for the efficient execution of programs and tasks.

Different Types of Memory in a Computer

The two basic forms of memory in a computer are primary (volatile) and secondary (non-volatile)

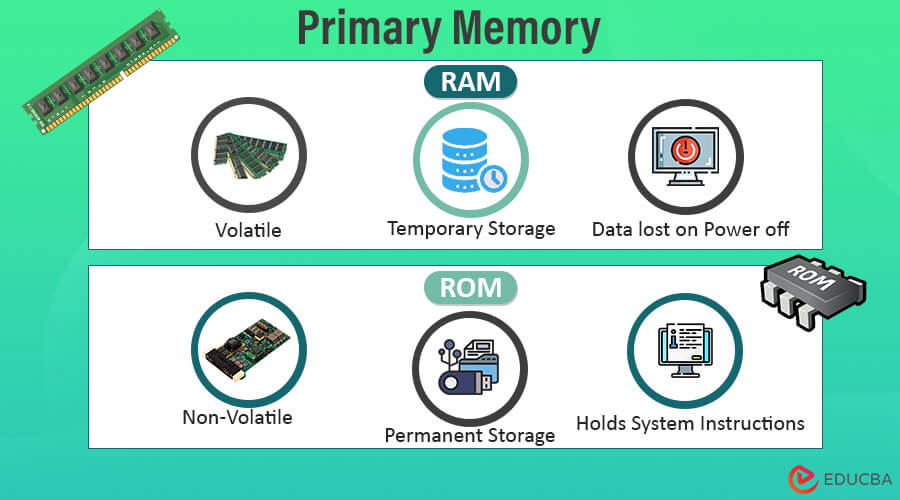

1. Primary Memory

The main form of memory that the CPU directly accesses for immediate use during active processing is known as primary memory. Because data is only stored there while the computer is powered on, it is known as volatile memory. The information kept in primary memory is lost when the computer shuts down or loses power.

The two main categories of primary memory are

RAM (Random Access Memory)
ROM (Read-Only Memory)

1. RAM (Random Access Memory)

Random Access Memory (RAM) is a crucial type of primary memory in a computer system. It is volatile memory; the computer’s processor (CPU) may quickly access the information it contains to utilize it when processing is active. In contrast to secondary memory (such as hard drives or solid-state drives), RAM doesn’t save data when the computer is shut down.

Types of RAM are:

a. Dynamic Random Access Memory (DRAM)

The most popular type of RAM in contemporary systems is DRAM. It differs from other RAM types in simplicity, high density, and affordability. DRAM uses capacitors as its data storage medium, necessitating frequent refreshing to ensure data integrity. It becomes dynamic due to this operation, called “DRAM.” DDR SDRAM (Double Data Rate Synchronous DRAM), the most popular type of DRAM used in computers, comes in several versions, including DDR2, DDR3, DDR4, and DDR5, each of which offers faster data transfer rates and higher efficiency.

b. Static Random Access Memory (SRAM)

SRAM is less dense and expensive than DRAM but is speedier and more energy-efficient. SRAM uses flip-flops to store data instead of DRAM, which makes it static and eliminates the need for ongoing refreshing. Despite limiting SRAM’s capacity, this characteristic speeds up access times. People frequently use SRAM in crucial locations such as CPU cache memory, where they need fast data access because of its high speed.

c. Synchronous Dynamic Random Access Memory (SDRAM)

A DRAM variant called SDRAM synchronizes data transfers with the computer’s clock to improve data processing. It operates in sync with the CPU’s clock rate, improving overall system performance and data transfer predictability. This category includes the DDR SDRAM described before, and its generations have experienced notable advancements in data transfer rates, latency, and energy economy.

2. ROM (Read-Only Memory)

Read-Only Memory(ROM) is a form of computer memory that stores data permanently, retaining its contents even when the machine is powered off. Data in ROM is “read-only” since, as the name implies, it cannot be easily changed or replaced. It provides vital firmware, data, and instructions for the computer’s fundamental processes, including booting and system initialization.

Types of ROM are:

a. Mask ROM (MROM)

During chip manufacturing, the chip manufacturers permanently program data into Mask ROM, a type of read-only memory (ROM). At the manufacturing step, the data is “masked” onto the ROM; You can’t change or edit it. When the information stored on a chip needs to remain constant and large production amounts are required, Mask ROMs can be a cost-effective solution.

b. Programmable ROM (PROM)

After manufacturing the chip, one can program data onto it using a programmable ROM. It takes a specific tool called a “PROM programmer” to put data into PROM. Once you program the information, you cannot alter it. You cannot change or delete data once you commence the procedure because it is irreversible.

c. Erasable Programmable ROM (EPROM)

A form of ROM called an EPROM can be erased and reprogrammed by exposing it to ultraviolet (UV) radiation. UV radiation exposes the data, causing the quartz window to allow UV light to pass through and wipe it clean. After erasure, a PROM programmer can program new information onto the EPROM.

d. Electrically Erasable Programmable ROM (EEPROM)

EEPROM, commonly called E2PROM, is comparable to EPROM but allows for electrical erasure and reprogramming without UV light. Data updates are more accessible and more flexible. People usually employ this when data may need to be changed regularly, including when updating BIOS or recording user preferences in electronic devices.

e. Flash Memory

Flash memory allows rewriting and works similarly to RAM and ROM. It is non-volatile, like ROM, but unlike EEPROM, it can be electrically erased and reprogrammed. People commonly use flash memory technology in USB drives, memory cards, solid-state drives (SSDs), other storage devices, and BIOS chips for firmware updates.

Difference Between RAM and ROM

Below are some of the Differences between Ram and Rom:

Criteria	RAM	ROM
Stands for	Random-access memory	Read-only memory
Storage Volatility	Volatile	Non-volatile
Storage Capacity	Up to 256GB per chip	Up to 8MB per chip
Speed	Faster	Slower
Use	In standard computing operations	During the boot process
Types	DRAM, SDRAM, SRAM	MROM, PROM, EPROM, EEPROM, Flash Memory

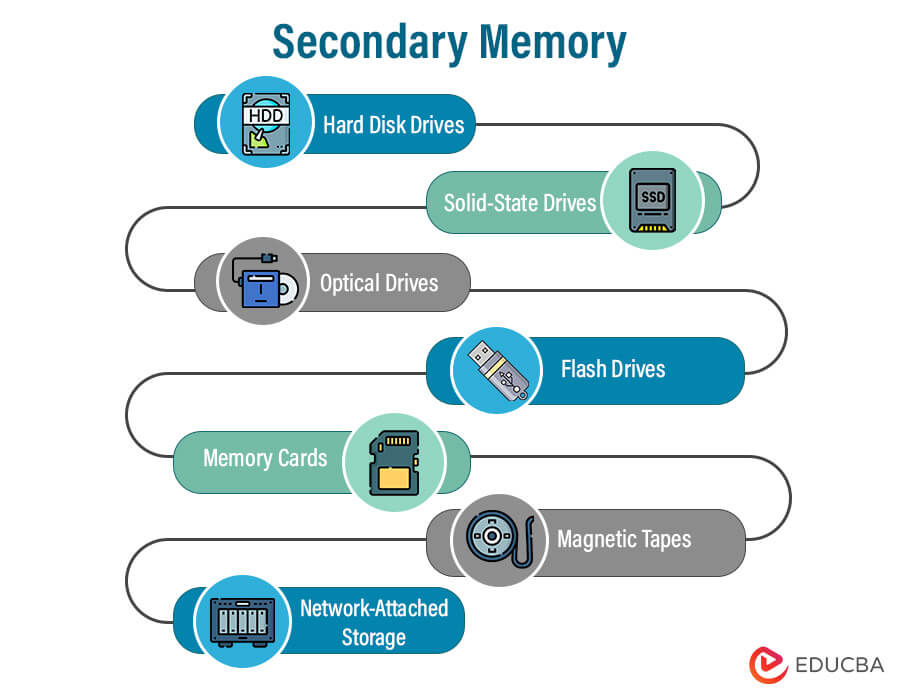

2. Secondary Memory

A sort of computer memory used for long-term data storage, even while the computer is off, is secondary memory, often referred to as non-volatile memory. Secondary memory preserves data longer than primary memory (RAM), which is volatile and temporary. It functions as a storage repository for different files, programs, and other data types that the CPU doesn’t need to access or process immediately.

1. Hard Disk Drives (HDD)

Hard disc drives (HDD) are conventional mechanical data storage components in computers. The read/write heads access and store data on magnetic discs, also known as platters, which rotate at high speeds. Magnetic patterns store data on the platters. HDDs are affordable and offer large storage capabilities compared to other storage technologies. However, their performance sometimes suffers because the read/write process is mechanical. HDDs are still often used for bulk data storage, backup, and archive needs even though Solid-State Drives (SSD) are faster.

2. Solid-State Drives (SSD)

Solid-State Drives (SSD) are modern storage devices that employ NAND flash memory to store data. SSDs have advantages over Hard Disc Drives (HDD) because they are faster, more reliable, and more energy-efficient due to their fewer moving parts. Data storage eliminates the need for any mechanical parts by using memory chips. This results in significantly faster data access. SSDs provide much quicker read and write speeds, enhancing system performance overall and accelerating application loading times. They are commonly used as the primary storage drives in laptops and PCs, offering rapid boot times and improved responsiveness. SSDs have grown in popularity because of their greater performance and dependability, although they are often more expensive per gigabyte than HDDs.

3. Optical Drives

Optical drives are storage devices that store and read data on optical media, such as CDs, DVDs, and Blu-ray discs. These drives use a laser to read and write data to optical discs with microscopic pits and lands that stand in for binary data. As the laser scans the disc, it detects changes and translates them into digital data. Software installation, CD playback, movie viewing, and data backup were all formerly common uses for optical drives. However, as digital media and cloud storage have become more common, their popularity has decreased. However, optical discs are still helpful for many purposes, including data archiving, playing physical media, and retrieving old software.

4. Flash Drives (USB drives)

Flash drives, also called USB or thumb drives, are small, durable devices that use flash memory to store and transfer data. They connect to computers via USB and are popular for fast data access, backup, and portable storage. They’re convenient and versatile for carrying documents, files, software, and other data between devices.

5. Memory Cards

Small, portable memory cards are a widespread storage media found in cameras, smartphones, tablets, and other electronic devices. They may store data using flash memory technology and are available in several formats, including Secure Digital (SD), microSD, CompactFlash, etc. High storage capacities are available on memory cards, which are also simple to remove and interchange between devices. They serve as extra storage or as a means of data transfer between devices and are used to store pictures, videos, music, and other types of media. Memory cards are frequently used in mobile phones to increase storage and save media files, as well as in digital cameras to record and store photographs.

6. Magnetic Tapes

Magnetic Tapes are a cost-effective and durable option for data backup and archival. They use magnetic patterns to store binary information on a long strip wound onto a reel. Government agencies, research institutions, and large corporations frequently utilize them to store data for extended periods. Although they have slower access time than modern storage devices, they offer high storage capacity.

7. Network-Attached Storage (NAS)

A NAS device is a storage system that connects to a network to provide centralized data storage and file sharing for multiple users and devices. This system operates independently as a file server, effectively storing, organizing, and retrieving data across various devices. NAS systems offer features such as user access control, data encryption, remote access, media streaming, and data backup capabilities. They are widely used in homes, small offices, and businesses to centralize data storage, improve data security, and enhance collaboration among users within the network.

Virtual Memory

Operating systems use virtual memory as a technique for managing memory to increase the available physical RAM of a computer system. The hard drive or SSD stores memory in smaller units known as pages. If a program needs more memory than is physically installed, the OS swaps out less frequently used data from RAM to virtual memory on the disk. The computer retrieves the data from virtual memory and loads it back into the RAM when it needs it again.

The benefits of virtual memory include:

Increased Effective Memory: Virtual memory enables running larger apps or many applications simultaneously, even when physical RAM is constrained.
Memory Isolation: Each program runs in its own virtual memory space, preventing other programs from accessing one another’s memory and improving system security and stability.
Effective RAM Use: The system stores frequently accessed data in RAM while transferring less commonly used information to disk to optimize memory usage.

Memory Management Unit (MMU)

The MMU translates virtual memory addresses into physical memory addresses in the RAM, acting as a mediator between the CPU and the RAM during program execution.

Address translation, which the MMU uses to carry out its duties, involves the following steps:

Virtual Memory Address Translation: The MMU intercepts and converts virtual addresses into physical addresses when a program requests memory access using a virtual address.
Page Tables: The operating system uses page tables, which are data structures utilized by the MMU, to store the mappings of virtual addresses to physical addresses. These tables help the MMU in carrying out the address translation procedure effectively.
Address Mapping: When a program requests a virtual address, the MMU searches the page table entries to determine the associated physical memory address.
Memory Access: The MMU sends the physical memory address to the RAM once the translation process is complete. This allows the CPU to obtain the desired data or instruction.

Along with address translation, the MMU is in charge of other memory-related duties like managing memory protection, implementing virtual memory techniques (such as paging or segmentation) into practice, and producing exceptions or faults in the event of unauthorized memory access attempts.

The Memory Management Unit is crucial to modern computer systems since it enables effective memory utilization, offers virtual memory capabilities, and boosts overall efficiency and dependability.

Future Trends in Computer Memory

As technology advances, experts anticipate that several trends will affect how we utilize computer memory in the future. Key trends include some of the following:

Increased Capacity: Computer memory is growing in storage capacity, both in RAM and SSDs. Better technology and manufacturing processes will enable higher-density memory chips, resulting in larger storage capacities at more affordable prices.
Faster and More Efficient Memory: Future memory technology will prioritize faster data transfer rates and lower latency. As a result, memory access times and overall system performance will be shorter, making computers more responsive and capable of efficiently completing complicated tasks.
Nonvolatile Memory Advancements: NAND flash memory and other new nonvolatile memory technologies will continue to evolve. Nonvolatile memory advancements will result in quicker, more reliable, and energy-efficient storage systems, further reducing reliance on existing mechanical storage devices such as HDDs.
Emergence of New Memory Technologies: Resistive RAM (ReRAM), magnetic RAM (MRAM), phase-change memory (PCM), and memristor-based memory are examples of new memory technologies with high future potential. Compared to existing memory types, these technologies have the potential for significantly faster access times, higher endurance, and improved power efficiency.
Persistent Memory: Storage-class memory (SCM), or persistent memory, blurs the distinction between traditional RAM and storage devices. It combines RAM’s speed with storage’s non-volatility, balancing performance and data persistence. As persistence memory becomes more common, it fundamentally alters how computer systems store and access data.
Integration of Memory and Processing Units: Future trends may lead to greater integration of memory and processor units. Advanced packaging techniques, like 3D stacking, allow memory to be placed on top of or next to the processor, lowering data transfer distances and enhancing system performance even further.
Quantum Memory: Quantum memory, which uses quantum entanglement and superposition principles, has the potential to revolutionize data storage and processing capacities. Although it is still in the research and development stages, quantum memory promises exponential data storage density and computing power gains.
Optane and 3D XPoint Technology: Optane from Intel and 3D XPoint from Micron are innovative technologies that introduce a new memory category, filling the void between traditional RAM and SSDs. These technologies offer faster data access than SSDs and greater endurance than NAND flash memory, bringing up new possibilities for memory-intensive applications.

FAQs

Q1. What is the Distinction between RAM and ROM?

Answer: RAM (Random Access Memory) is a volatile memory used for short-term data storage while the computer is on. It enables the CPU to access and modify data swiftly. On the other hand, ROM (Read-Only Memory) is non-volatile and includes permanent data required for booting the computer and supplying firmware instructions. Making changes to the information stored in ROM is difficult.

Q2. What kind of memory should I choose for my computer?

Answer: Consider your requirements as well as your budget. Choose enough RAM for quick and temporary data storage. Choose HDDs, SSDs, or other secondary memory alternatives based on capacity requirements for long-term data storage.

Q3. How can I optimize PC memory usage?

Answer: Closing unnecessary programs and processes helps free up RAM. Upgrading to higher-capacity RAM or employing SSDs for faster access times will increase overall system performance.

Conclusion

Technology advancements are driving exciting trends in computer memory. These trends include increased memory capacity, more efficient memory, improved non-volatile memory technologies, the integration of memory and processing units, and the possible emergence of revolutionary technologies like quantum memory.

It’s essential to comprehend the distinct categories of computer memory to enhance performance, handle data proficiently, and stay up-to-date with the ever-changing world of computing. By utilizing different types of memory, computer systems can provide greater speed, better responsiveness, and increased capabilities to meet the requirements of modern computing tasks and applications.
